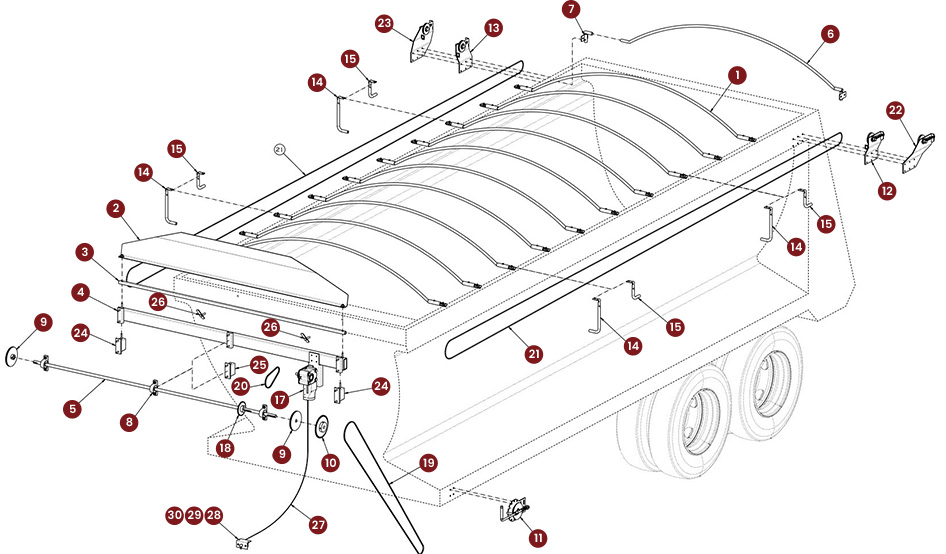

HEAVY DUTY CABLE SYSTEM REPLACEMENT PARTS BREAKDOWN
| Reference Number |
Part Number | Description |
|---|---|---|
| 1 | 1065 | AY-BOW W/ OW CLAMPS,8' |
| 2 | 1022 | PL-WIND DEFLECTOR 8' |
| 3 | 1023 | TUBE-1 SQ. X 93.5" |
| 4 | 1024 | WLDT-FRONT BEARING MOUNT, 8' |
| 5 | 1066 | ROD-FRONT PULLEY,100" |
| 6 | 1086 | REAR TARP BOW-8' |
| 7 | 1084 | AY-BOW SPORT MOUNT |
| 8 | 1029 | PILLOW BLOCK BEARING-1" |
| 9 | 1062 | CABLE PULLEY-7" |
| 10 | 1059 | CHAIN SPROCKET-54 TOOTH |
| 11 | 1038 | AY-CHAIN CRANK |
| 12 | 1017 | AY-LH REAR IDLER |
| 13 | 1000 | AY-RH REAR IDLER |
| Reference Number |
Part Number | Description |
|---|---|---|
| 15 | 1096 | SAFETY HOOK-FLAT LH |
| 16 | 1102 | SAFETY HOOK-FLAT RH |
| 17 | 2004 | O-ELECTRIC MOTOR KIT |
| 18 | 1099 | CHAIN SPROCKET-30 teeth motor |
| 20 | 1105 | S.S. CHAIN-1’ SELL BY FOOT |
| 21 | 1124 | S.S. CABLE-1/4” SELL BY FOOT |
| 22 | 1118 | AY-LH REAR IDLER,EXT |
| 23 | 1119 | AY-RH REAR IDLER,EXT |
| 24 | 1108 | WLDT-FRONT MOUNT,SIDE |
| 25 | 1109 | WLDT-FRONT MOUNT,CENTER |
| 27 | 1120 | 6GA. DUAL CONDUCTOR WIRE-65’ |
| 28 | 11103 | ROTARY SWITCH KIT |
| 29 | 1104 | 50 AMP BREAKER each |
